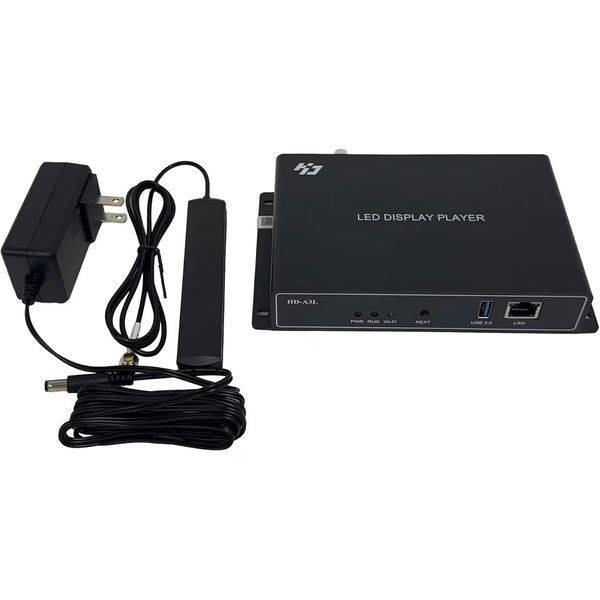

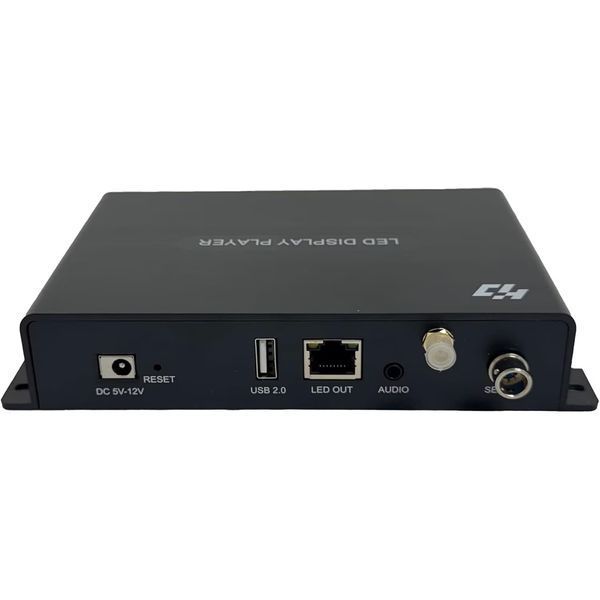

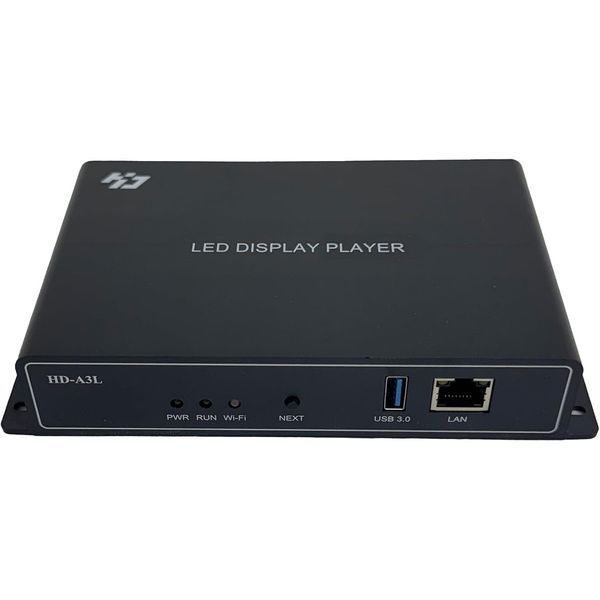

HUIDU A3L Multimedia Player – Professional solution for LED displays
The HUIDU A3L is a professional multimedia player for LED screens, compatible with playback of video files, images, GIF animations, text, WPS documents, spreadsheets, clocks, scheduled programs, and other types of content.
It comes standard with a Wi-Fi module, allowing wireless control via the LedArt mobile app, as well as connection to the XiaoHui Cloud platform for remote management of display networks.
The internal storage capacity ensures stable and continuous asynchronous playback, while the sensor interface allows real-time monitoring of environmental conditions.
The A3L model delivers high-performance video playback, advanced network protection, simple operation, and full functionality, making it suitable for commercial applications, intelligent display systems, and large LED panels.
Inputs:
-
1 × network port for communication and quick configuration
-
1 × USB 2.0 port and 1 × USB 3.0 port for program loading and storage expansion
-
1 × interface for connecting environmental sensors (temperature, humidity, air quality, etc.)
Outputs:
-
1 × standard Gigabit network port, directly compatible with HD-R series receiving cards
-
Maximum control area: 655,360 pixels
-
Maximum horizontal resolution: 8192 pixels; maximum vertical resolution: 3840 pixels
-
1 × 3.5 mm TRS stereo audio output (2 channels)
Electrical parameters:
Environmental conditions:
-
Operating temperature: -40°C ~ +70°C
-
Operating humidity: 0% ~ 80% RH (non-condensing)
-
Storage temperature: -40°C ~ +80°C
-
Storage humidity: 0% ~ 80% RH (non-condensing)
Physical data:
-
Dimensions: 175 × 101.1 × 32.1 mm
-
Net weight: 240 g (standard version)
-
Protection rating: IP20 – requires protection against moisture and water droplets
Software:
Package contents:
The HUIDU A3L provides a complete and stable solution for professional LED display control, combining advanced functionality with simple operation and modern connectivity.
