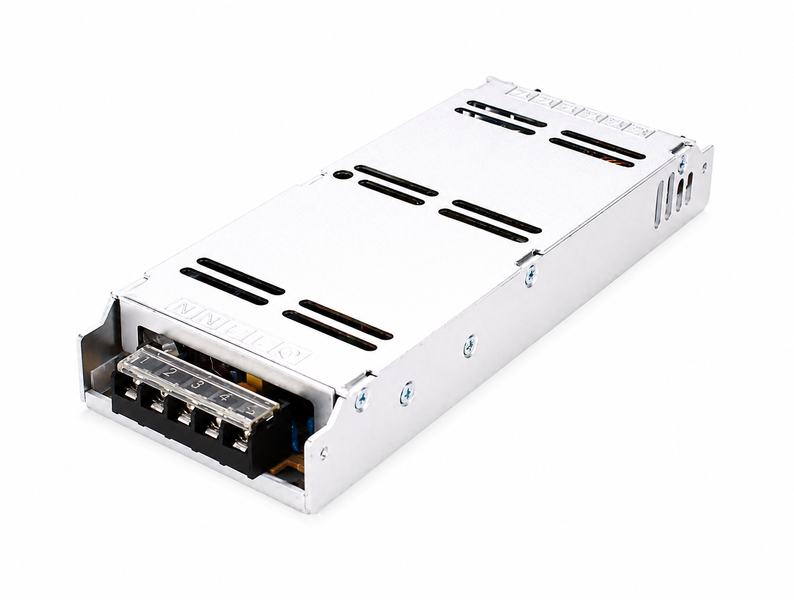

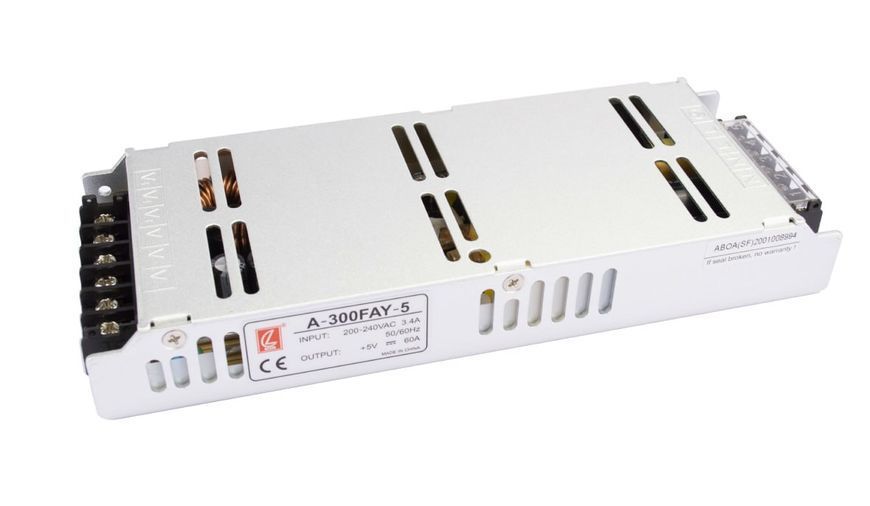

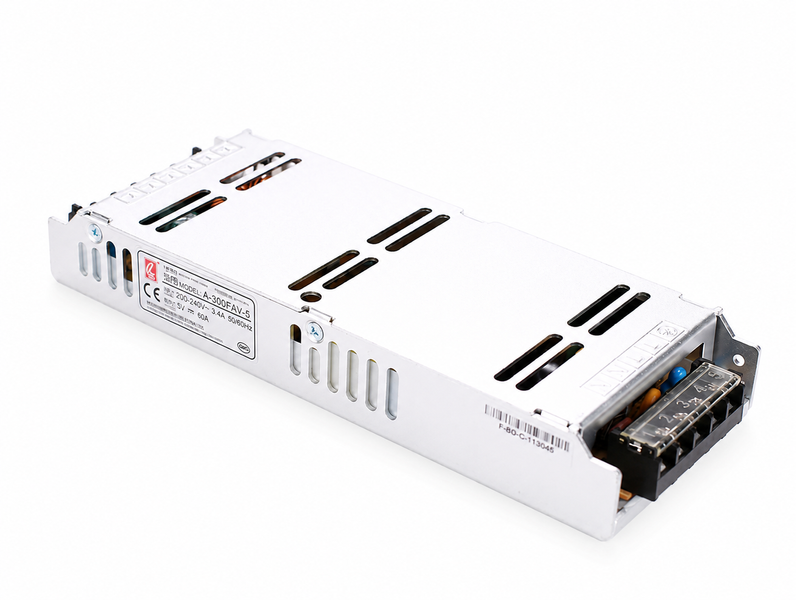

CZCL A-300FAY-5 300W 5V 60A LED Power Supply is a reliable, high-efficiency low-profile power supply designed specifically for LED displays, digital signage, and multimedia applications.
Thanks to its compact enclosure and fanless passive cooling, it can be easily integrated into LED modules and other equipment with limited installation space. High efficiency and comprehensive protection features ensure stable long-term operation.
Key Features:
Low profile: only 31 mm high
Fanless passive cooling
Operating temperature: -30°C to +70°C (according to the derating curve)
Short-circuit and overload protection
Automatic recovery after fault removal
100% full-load burn-in test
Minimum 89% efficiency
High reliability and stable performance
Technical Specifications:
Model: CZCL A-300FAY-5
Input Voltage: 176–264V AC
Input Frequency: 47–63 Hz
Input Current: 3.4A at 230V AC
Output Voltage: 5V DC
Rated Output Current: 60A
Maximum Output Power: 300W
Brightness: 4500 nits
Output Voltage Adjustment Range: ±5%
Output Voltage Accuracy: ±2%
Ripple & Noise: Maximum 200mVp-p
Hold-up Time: 20 ms at 230V AC, full load

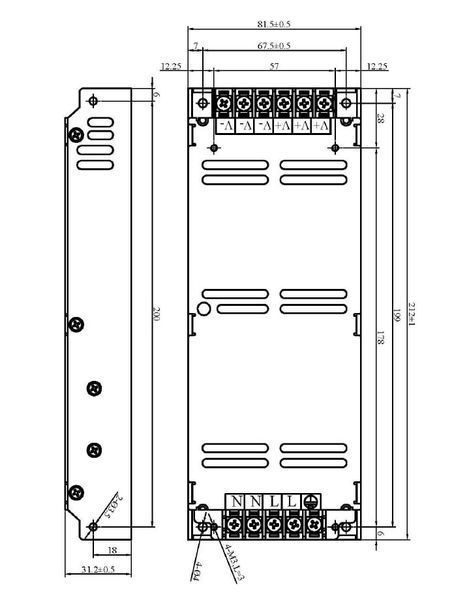

Dimensions: 212 × 82 × 31 mm
Weight: Approximately 0.55 kg
Estimated MTBF: 250,000 hours at 25°C
Recommended Applications:
LED displays, LED advertising screens, LED video walls, digital signage, illuminated signs, multimedia panels, and other 5V-powered equipment.
Standards & Compliance:
EN55024, EN61000-4-2/3/4/5/6/8/11, GB17625.1, EN61000-3-2/3, EN55022, GB4943, and UL1012.
