LED Street Light LUMION City PRO LMN-CP-100 – Professional outdoor lighting fixture
The LUMION City PRO LMN-CP-100 street light is designed for outdoor lighting of streets, roads, highways, industrial areas, parking lots, gas stations, and public spaces.
It is built for continuous operation under various climatic conditions, ensuring high energy efficiency and a long service life.
The housing is made of corrosion-resistant aluminum and equipped with Lumileds LUXEON 3030 2D LED modules and a Mean Well XLG-100-H-A professional driver, providing stable operation and consistent performance.
The luminaire delivers a uniform light distribution and high luminous flux, ideal for professional urban lighting applications.
Technical Specifications:
-
Power: 100 W
-
Luminous flux: 15,000 lm
-
Color temperature (CCT): 5000 K
-
Luminous efficiency: up to 150 lm/W
-
Color rendering index (CRI): >72
-

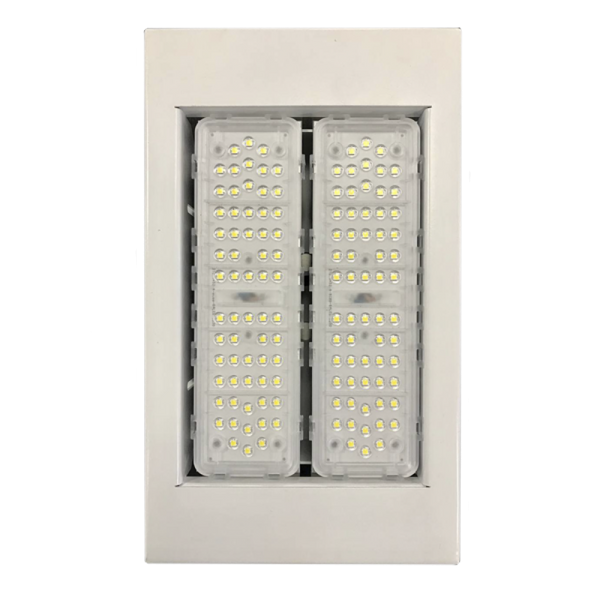

LED type: SMD Lumileds LUXEON 3030 2D (middle power)
-
Current: 0.45 A
-
Input voltage: 90–305 V AC
-
Frequency: 47–63 Hz
-
Power factor: >0.99
-
Beam angle: 90°
-
Protection class: Class I
-
Ingress protection: IP67 (housing and driver), IP68 (modules and connectors)
-
Lifetime: 50,000 hours
-
Housing dimensions: 354 × 224 × 105 mm
-
Mounting dimensions: 310 × 165 mm
-
Net weight: 2.75 kg

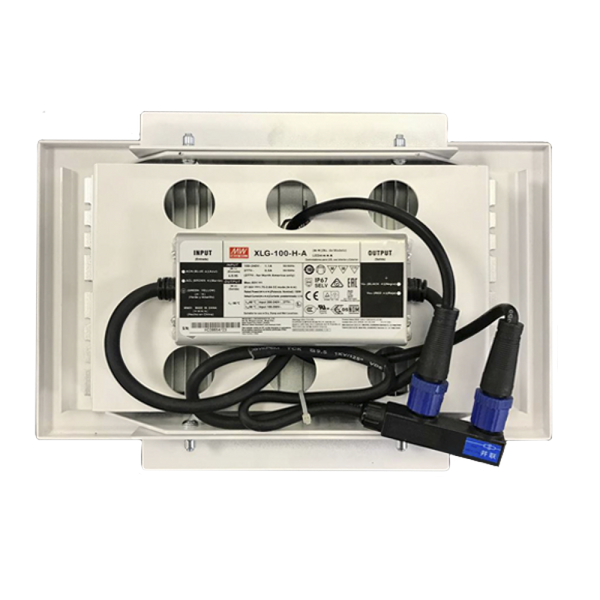

LED Driver:
-
Manufacturer: Mean Well
-
Model: XLG-100-H-A
-
Output voltage: <120 V AC
-
Output current: max 0.45 A
-
Energy efficiency: >90%
-
Protections: short circuit, overvoltage, overcurrent
-
Output current precision: ±5%
-
MTBF: >280,000 hours at 50°C
-
Case temperature (Tc): +90°C
-
Certifications: ENEC / CB / CCC / SELV Output
-
Standards: EN 61347-1, EN 61347-2, EN 62384, IEC 61000-4-5
-
Operating temperature range: -40°C ~ +90°C
-
Operating humidity: 20–95% RH
Operating Conditions:
-
Ambient temperature: -40°C ~ +50°C
-
Relative humidity: 5–90%
-
Climatic class: U1 (temperate climate)
-
Mounting category: M1, M2 (enhanced mechanical resistance)
Installation Instructions:
-
Installation must be performed only by qualified personnel.
-
Do not connect or disconnect the cable under voltage.
-
Install only after securely fixing the light body to the support (arm, pole, etc.).
-
Ensure that the power supply matches the specified voltage range.
-
Do not suspend or handle the lamp by the power cable.
Maintenance and Safety:
-
Clean only with neutral solutions, avoiding solvents or abrasive substances.
-
Do not use damaged or disassembled lamps.
-
At the end of its service life, the lamp should be disassembled and delivered to specialized recycling centers.
Compliance:
-
EN 60598-1:2017
-
EN 60598-2-3:2014
-
EN 55015:2015
-
EN 61547:2016
-
EN 61000-3-2:2016
-
EN 61000-3-3:2017
Warranty:
-
Warranty period: 60 months from the date of purchase
-
Nominal lifetime: 50,000 hours
-
Storage duration: unlimited
-
Warranty condition: product must be presented with the purchase document or warranty certificate
Package includes:
